Tree Audio The Branch II
42535 kr incl VAT
All tube channelstrip
After the success of our Roots console, it was obvious we needed a stand alone channel strip version of this console. It features all of the same controls as The Roots, as well as an internal regulated tube power supply. The Branches have been flying out the door. So if all you need is a single channel or two, this is it. It is simple to operate and has an amazing sound.
Description
Tree Audio’s Branch may be all you need! It’s a
stand alone channel strip version of the Roots console, featuring all of
the same controls as The Roots, as well as an internal regulated tube
power supply. The Branches have been flying out the door. So if all you
need is a single channel or two, this is it. It’s simple to operate and
has an amazing sound.
New Features!
80Hz, 125Hz, 250Hz Hi Pass Filter
Variable Gain Select
Output Level pot
Input Impedance Select – 37.5, 150, 600 Ohms

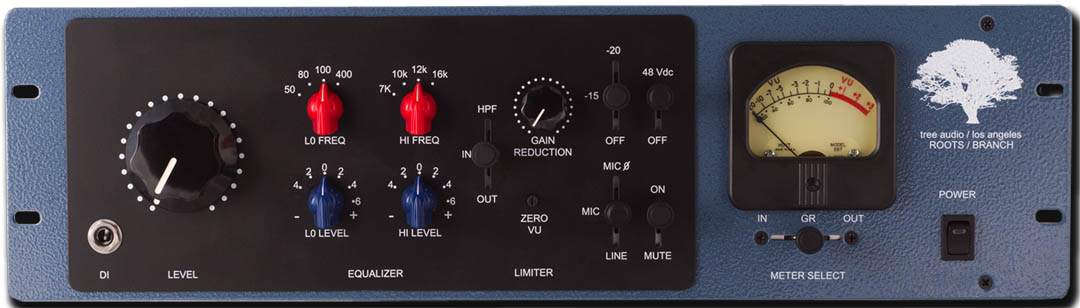

All Tube Channel Strip: Same high quality sound and circuitry as the Roots console Mic Pre/line input/direct input (instrument in) EQ and limiter Features On Front Panel (left to right): Direct input/big knob level pot/EQ to level, 50Hz, 100Hz, 400Hz EQ hi level, 7k, 10k, 12k, 16k/limiter switch (out, in HPF) 250Hz Gain reduction level (limiter) Line, mic, mic reverse phase switch/pad switch (off, -10, -20dB) Mute switch/+48Vdc phantom power switch/meter select (input, gain reduction, output) Custom wound uncut and output transformers Complete unit comes in 3-rack space box Includes vacuum tube and linear regulated power supply
COMPLETE UNIT COMES IN 3-RACK SPACE BOX
INCLUDES VACUUM TUBE AND LINEAR REGULATED POWER SUPPLY SAME HIGH QUALITY SOUND AND CIRCUITRY AS THE ROOTS CONSOLE
Additional information
| Weight | 11 kg |
|---|
