Purple Audio LILPEQR

Description

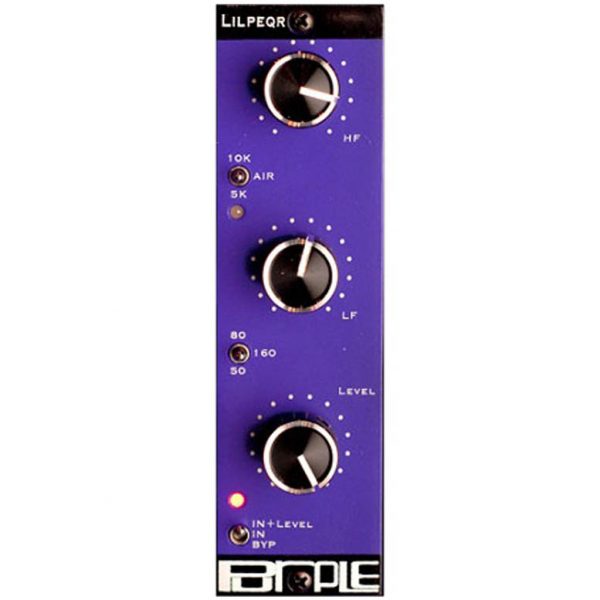

The LILPEQr is Purple Audio’s take on the classic program (aka final mix) equalizer. It offers high and low frequency shelving bands, each with three carefully selected corner frequencies to choose from, and a switchable fader knob for overall level control. The LILPEQr emulates the colorful 3D richness and useful responses of our favorite vintage tube (aka valve) program EQs (namely, the Lang PEQ-1 and the Klangfilm RZ062), but in a compact, solid-state format. The LILPEQr will add air, weight, and glue to an already balanced mix. Additionally you can also use the LILPEQr to immediately and intuitively alter the overall tone of an individual source. When the EQ is first switched in (center switch position – “IN” – LED off) your signal is injected passively into the tone network, directly following the input transformer. As with many classic program equalizers, this configuration allows for the ultimate in wide, lush, mix-buss response with extra “glue” and all that richness. Flip the switch one more click (upper switch position – “IN+Level” – LED red) to activate the buffered “Level” control. Placed in between the input transformer and EQ network, these discrete, class A buffers change the response ever so slightly, making the signal seem a bit tighter and more focused. This mode is more useful on individual sources within a mix. Relay true bypass (lower switch position – “BYP” – LED green) allows for easy before and after EQ comparisons, and a simple overall circuit path allows for wide bandwidth so that everything passes through… sounding better! In program mode (“IN”), with both EQ knobs centered, frequency response is +/- 0.5dBu from 20Hz to 20kHz, and extends below 10Hz and well beyond 120kHz before any drooping occurs. Features _x000D_
_x000D_
Big sound, small package _x000D_
Major vibe, minimal interface _x000D_
High Frequency shelf boost/cut 12dB at 5kHz, 10kHz, or 28.5kHz (“AIR”) _x000D_
Low Frequency shelf boost/cut 20db at 50Hz, 80Hz, or 160Hz _x000D_
Switchable, buffered level control for overall volume adjustment _x000D_
Relay True Bypass _x000D_
Tricolor LED level meters _x000D_
Transformer balanced in and out, with bridging 20kO input _x000D_
100% Class A, discrete signal path _x000D_
Current consumption: 60mA _x000D_
Over Current Resettable Fused (prevents any module problem from affecting your rack) _x000D_
ROHS – Lead Free _x000D_
LILPEQ-R Pinout _x000D_
_x000D_
Pin 1: Chassis Ground _x000D_
Pin 2: Output A + _x000D_
Pin 3: Output B + (mult from pin 2) _x000D_
Pin 4: Output A – _x000D_
Pin 5: Audio Ground _x000D_
Pin 6: Output B- (mult from pin 4) _x000D_
Pin 7: Input – _x000D_
Pin 8: Input – _x000D_
Pin 9: Input + _x000D_
Pin 10: Input + _x000D_
Pin 11: NC _x000D_
Pin 12: +15 or 16VDC 60ma _x000D_
Pin 13: Audio Ground _x000D_
Pin 14: -15 or 16VDC 60ma _x000D_
Pin 15: NC (+48VDC) _x000D_
Designed by Eisen Audio for Purple Audio.
