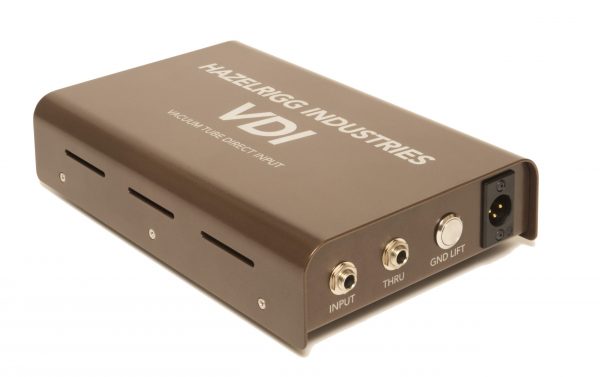

Hazelrigg Industries VDI

Description

Vacuum Tube DI “,”tablet”:” Gear “}},”slug”:”et_pb_text”}’>
Vacuum Tube DI

Any instrument designed to operate into a “guitar amp” will work perfectly with the VDI. Typical instruments include: electric bass, electric guitar, electric piano, acoustic instruments with a pickup (piano, acoustic guitar, electric violin, etc.), synthesizers, and samplers. The VDI is a single-channel device that provides the optimum load impedance for these instruments. It is capable of quality reproduction of a wide range of instrument levels. The unit does not have the limitations of passive transformer-type DIs, and has greater headroom and warmth when compared to similar solidstate devices. It is designed to operate in the professional recording or performing environment. The output level is “hot” mic level (-30 dBm nominal). The output is transformer-balanced, using a custom transformer built for us by Jensen Transformers, Inc., and is designed to match 150 ohm professional mic inputs. Top-quality parts are used throughout. The case is machined from solid quarter-inch thick aluminum plate for ruggedness and durability. Both the filament and plate power supplies are fully regulated.

Specifications “,”tablet”:””,”phone”:” Specifications “}},”slug”:”et_pb_text”}’>
Specifications

Vacuum Tube Direct Input
Amplifier and Power Supply Designed by D.W. Fearn

200 mV nominal unbalanced input
All-Tube Signal Path
Custom-made Jensen transformer
1 megohm minimum input load impedance

Transformer-balanced out

-10 dB gain
Frequency Response

+/- 0.2 dB 10 cps to 20 kc
-3 dB @ 0.5 cps and 95 kc

Unbalanced 1/4″ input
Balanced XLR output

<0.3% 20 cps to 20 kc THD + Noise Front Panel Microphone/Instrument Input (Redundant Microphone Input on Rear Panel) -30 dBm nominal “hot mic” output level 6.25”W x 2.25”H x 9.5”D dimensions Solid quarter-inch thick aluminum plate for ruggedness and durability Limited 7-Year Warranty (90 days for vacuum tubes) Handcrafted in the USA Learn more here

Additional information
