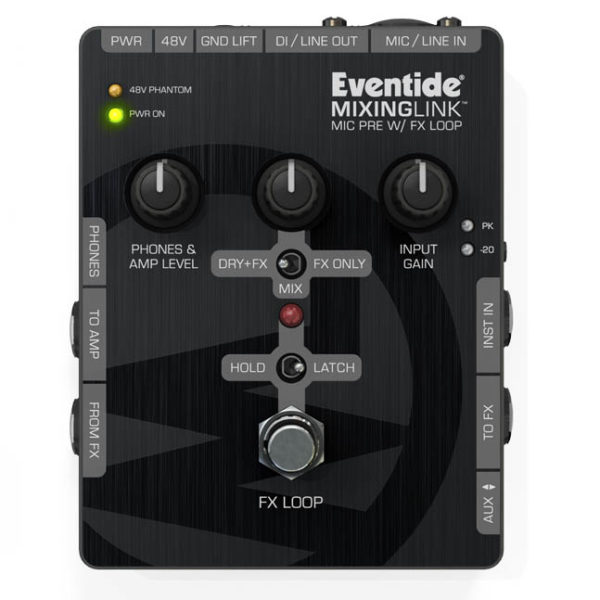

Eventide MixingLink

Description

The MixingLink is a new studio-quality microphone preamp in a compact stompbox form factor with an effects loop.  The MixingLink™ fits neatly on a pedalboard or in a backpack, allowing vocalists immediate control over effects.

-High Quality microphone preamplifier with greater than 120db signal to noise ratio with FX loop in a compact package

-Effects loop send and return accommodates balanced and unbalanced signals and interfaces with consoles or guitar pedals easily

-Latching or momentary footswitch control of effects loop for performance effects

-Works with a wide range of microphones including condenser and ribbon microphones with up to 70dB of clean gain

-Aux I/O connection supporting stereo input and mobile device send level

-Guitar amp output and headphone monitor output with separate master volume control

-International universal 9VDC power supply included, or 9V battery, or can be powered by the PowerFactor 2

-48V phantom power for condenser microphones

-Balanced XLR output which supports DI and Line levels (-10dB to +18dBu)

-Instrument and balanced line level inputs (-10dB to +18dBu)

-Versatile mix control supports 3 modes of operation – 100% microphone with effects blended in, or microphone/effects balance control, or 100% FX (with no microphone)
