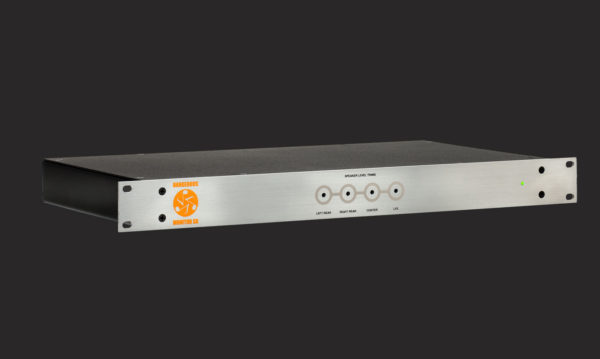

Dangerous Music Monitor SR

Description

Surround Expansion for Monitor ST

With the SR expansion unit, you can turn the award-winning MONITOR-ST into a versatile surround monitoring system. Need to work in 5.1, 7.1, 10.2?  No problem, just include as many SR units as needed. The MONITOR-ST/SR combo is simply the most accurate, clear, and flexible surround monitoring solution available.

Designed by the legendary Chris Muth, the MONITOR- ST/SR system handles all of your input sources and speaker routing with crystal clarity and massive headroom delivered from a meticulously designed circuit built from only the highest quality components available. With its relay-actuated analog stepped attenuator, ever-expandable input channels and speaker outs, programmable I/O levels, all controlled via the sleek remote control, you can accurately dial in even the most elaborate surround systems for rock-solid imaging and crystal clarity. And because all the switching within the MONITOR-ST/SR combo is handled by relays, your audio signals are delivered to your speakers unadulterated, removing all the guesswork while tracking, mixing, or mastering.

Features:

• Audiophile-grade components throughout for crystal clear monitoring
• Expand the MONITOR-ST into an elegant surround system
• Programmable remote tethered by a single Cat 5e shielded cable
• Customize the analog inputs, speaker sets and dedicated subwoofer output
• Audiophile-grade analog stepped-attenuator volume control
• Adjust for and store level offsets for different devices
• Dedicated meter outputs
• Use with Dangerous Music CONVERT-8 DAC for direct remote control integration and unmatched clarity

Specifications:

• Gain Tracking Accuracy: better than 0.05dB for 6 channels
• THD+N: 0.002%
• IMD: 0.003%
• Frequency Response: 1Hz-100kHz -0.1 dB
• Crosstalk Rejection: >95dB
• Nominal Input Level: +4dBu or -10dBV
• Crossover: -3dB @57Hz 18dB/Octave modified Butterworth/Chebyshev
• Headphone Amp: 0.002% THD+N
• Headroom: +25 dBu to main outputs
• Dynamic range : 110dB
• Maximum level: +25dBu
