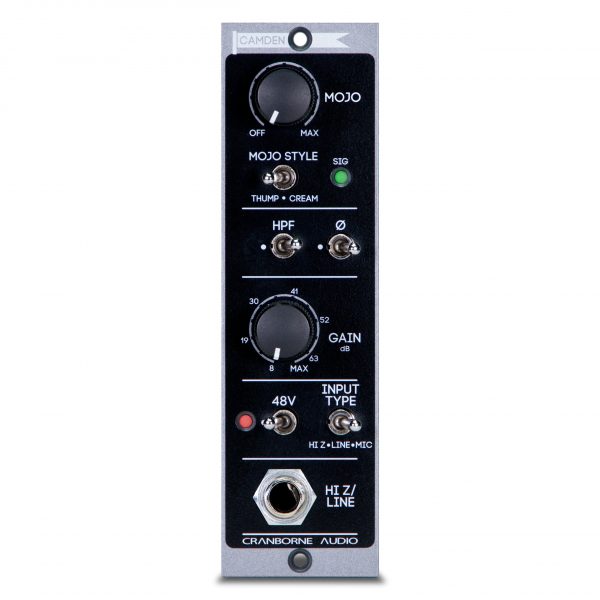

Cranborne Audio Camden 500

• Fully-discrete, transformerless design featuring our custom ‘Camden’ preamp topology designed by our Director of Engineering – Edward Holmes
• Optimised for and fully-compliant with the 500-series format
  • Camden 500 is not a 19” unit shoe-horned into a 500-series module, it has been designed from the ground-up to perform under the low-voltage power rails and supply current limitations of the 500-series format whilst delivering groundbreaking performance
• Performs at the near-theoretical limits of noise, distortion, and phase/frequency linearity at all gain settings
  • EIN: <-129.5dBu, 150 ohm source, unweighted, <-135.5dBu, Inputs common, unweighted
  • THD+N: <0.0004%, 1kHz, 35dB gain, 24dBu out
  • Intermodulation Distortion: <0.0008%, 50Hz and 7kHz, 35dB gain, 20dBu out
  • Phase Shift: <2.25°, 40dB gain, 20Hz to 20kHz, <4°, Max gain, 20Hz to 20kHz
  • Freq. Response: <±1dB, <5 Hz to >200 kHz, all gain settings
  • CMRR: >70dB, typ >85dB, 35dB Gain, 10-20kHz, 100mV Common mode
• Optimised input Impedance and input headroom for Mic, Line, and Hi-z sources
  • Mic Preamp, Instrument Di, and – thanks to Mojo – line-level analogue saturator
• Custom ‘Mojo’ analogue saturation circuit with variable control, true bypass, and 2 discrete styles – Thump and Cream
  • Reamp tracks from your DAW through Mojo to apply analogue saturation to your stems, VST, and stereo mixes
  • Thump excites low-end content by boosting lower odd/even harmonics from a range of 160Hz to 20Hz and below
  • Cream boosts odd/even harmonics whilst also reducing the amplitude of the fundamental frequencies and applying typical transformer-style transient taming
• Gold Flashing on backplane contacts for increased conductivity and durability
• Designed & Engineered in the United Kingdom

Specifications:

• Minimum Gain: Mic= 8dB, Line = 0dB, Hi-Z = 3dB
• Maximum Gain: Mic = 68dB, Line = 60dB, Hi-Z = 63dB
• Input Impedance:
  Mic= 8.9kOhms 48v Off, 5.4kOhms 48v ON,
  Line = 24.3kOhms,
  Hi-Z= 1.5MOhm unbalanced, 3MOhm balanced
• Max Input Level:
  Mic = 17.6dBu (<0.003% THD), Line = 26.5dBu (<0.02% THD), Hi-Z = 24dBu (<0.02% THD)
• Output Impedance: 150 Ohms
• Max Output Level: 27.5dBu (<0.002% THD, 30dB gain)
• Equivalent Input Noise (EIN):
  <-129.5dBu (150 ohm source, unweighted), <-131dBu (150 ohm source, A-weighted), <-135.5dBu (Inputs common, unweighted)
• Frequency Response:
  ±0.25dB (<5 Hz to >200 kHz, 35dB gain),
  <±1dB (<5 Hz to >200 kHz, max gain)
• Phase Shift:
  <2.25° (40dB gain, 20Hz to 20kHz), <4° (max gain, 20Hz to 20kHz)
• THD+N: <0.0004% (1kHz, 35dB gain, 24dBu out)
• Intermodulation Distortion:
  <0.0008% (50Hz and 7kHz, 35dB gain, 20dBu out), <0.0006% (50Hz and 7kHz, 35dB gain, 15dBu out)
• Hi-Pass Filter (HPF): 80Hz, -3dB, 12dB/Oct
• Current Draw: 120mA per rail – idle, 140mA per rail – typical use case
• CMRR: >70dB, typ >85dB, 35dB gain, 10-20kHz, 100mV Common mode
• Slew Rate: 20V/uS, 35dB gain, 25dBu out
• Dimensions (mm): 31.8/133.35/170.11 (w/h/d)
